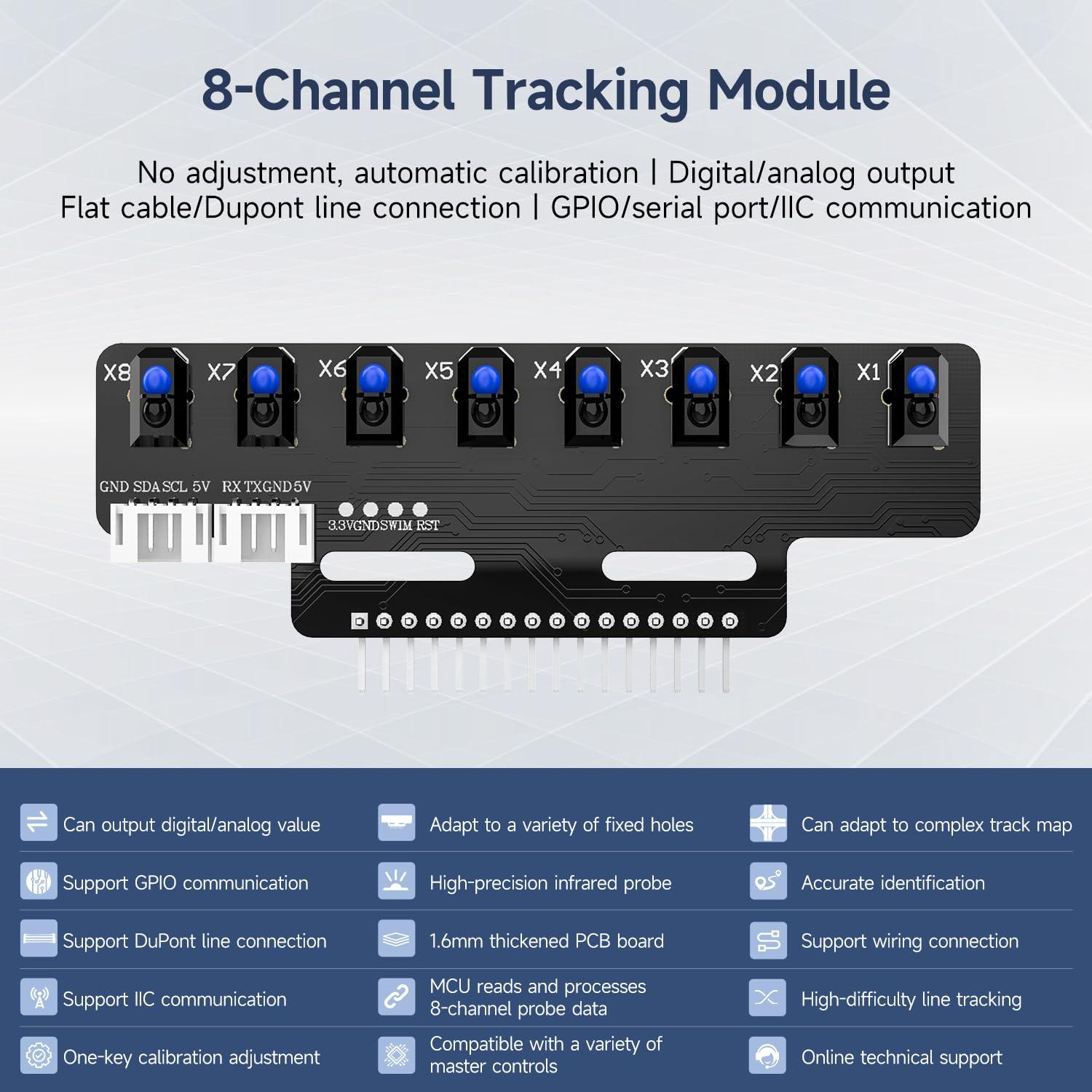

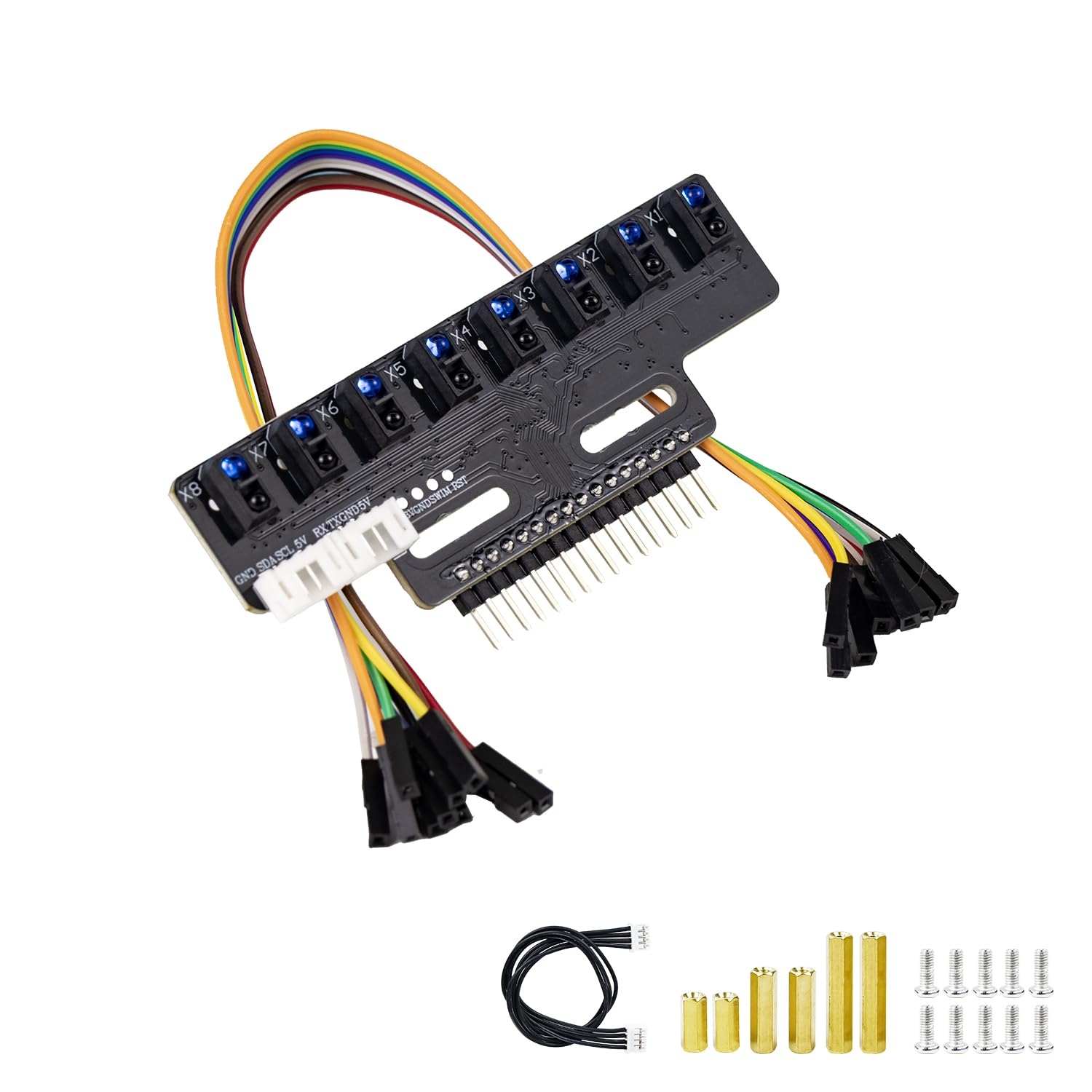

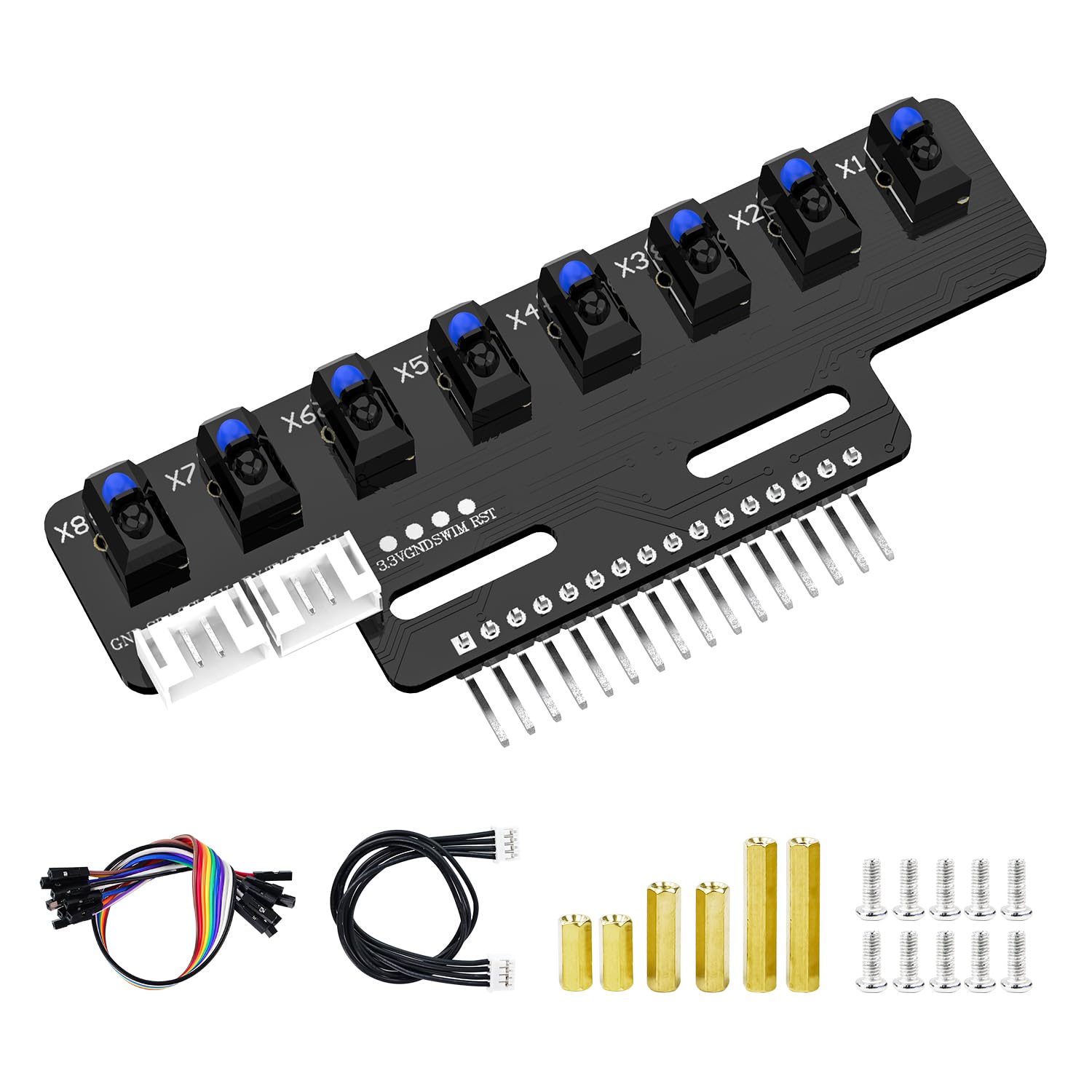

Yahboom 8-Channel Line Patrol Module Sensor 10 Pin,GPIO/IIC/USART,Suitable for RaspberryPi/STM32/UNO/Electronic Projects (8-Channel Module+PH2.0+Dupont Line+Copper Column)

*Chart shows price fluctuations over time. Current price may be the lowest in recent history.

Available Variations

Features

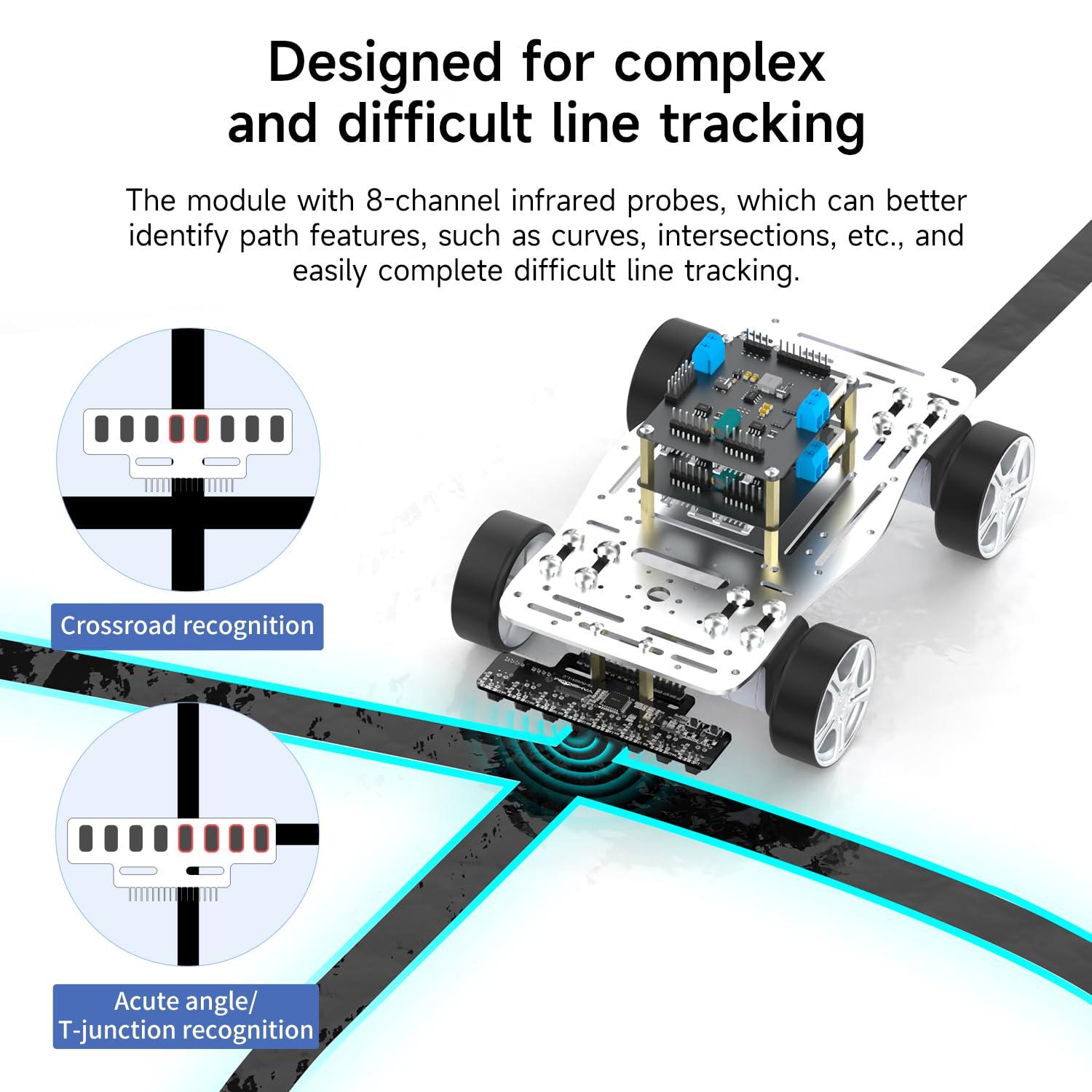

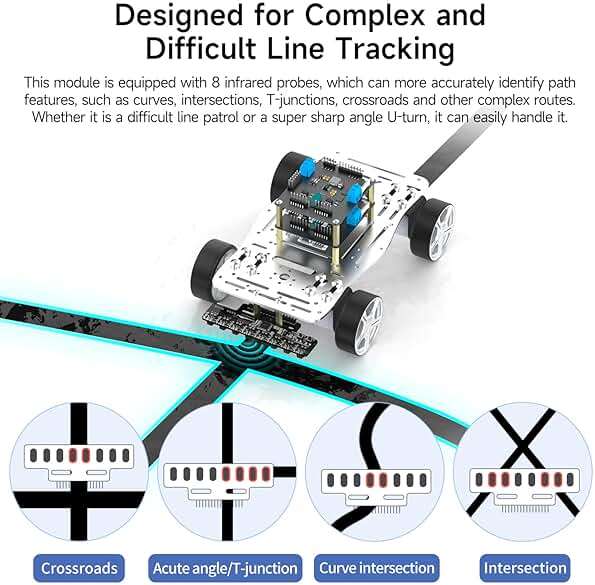

• 【High Quality 8-channel Infrared Patrol Module】Designed for complex and difficult patrol.The 8-channel patrol module has 8 infrared probes,which can better identify path features.Crossroads or sharp-angle intersections can be easily identified.No matter what track or map you use, it is compatible.

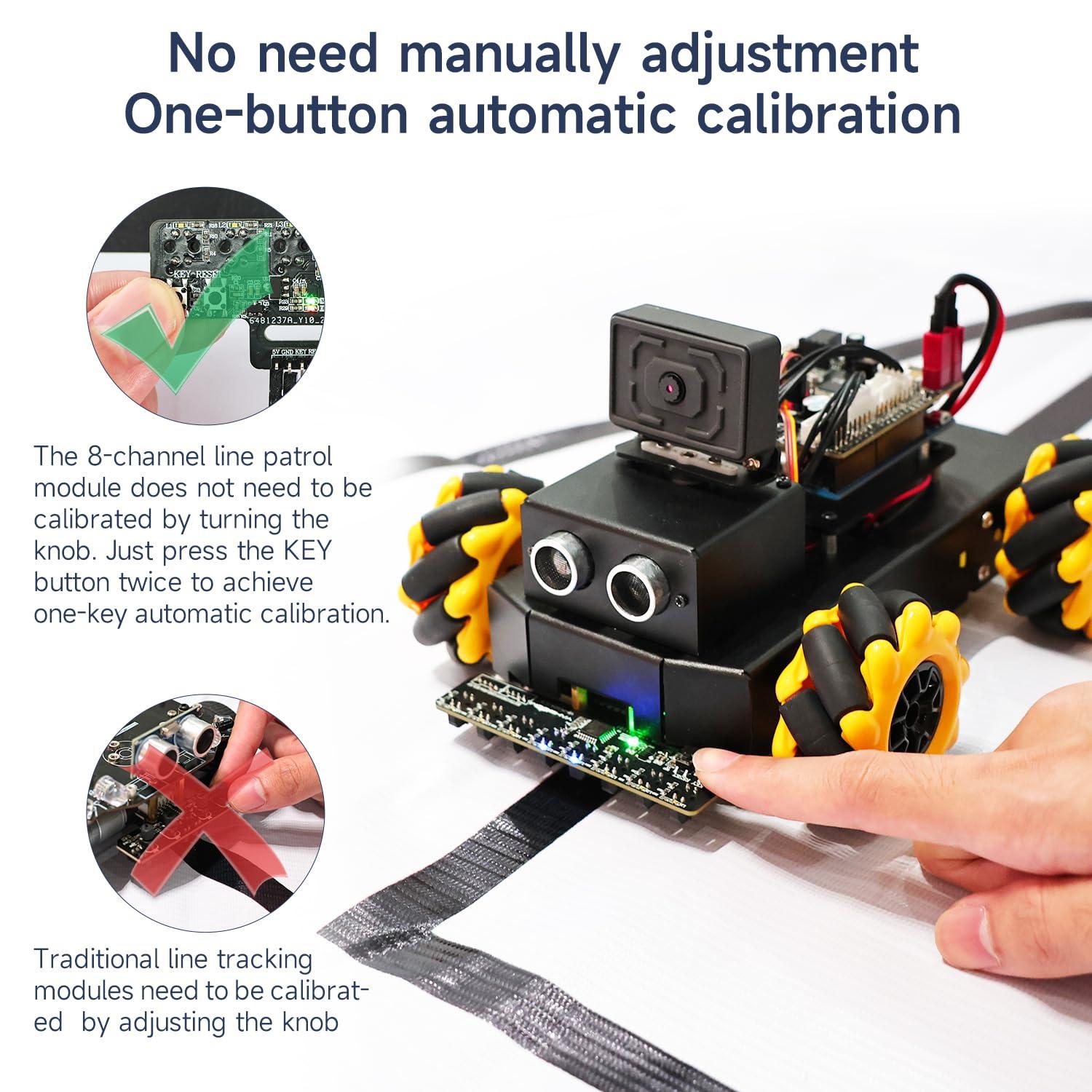

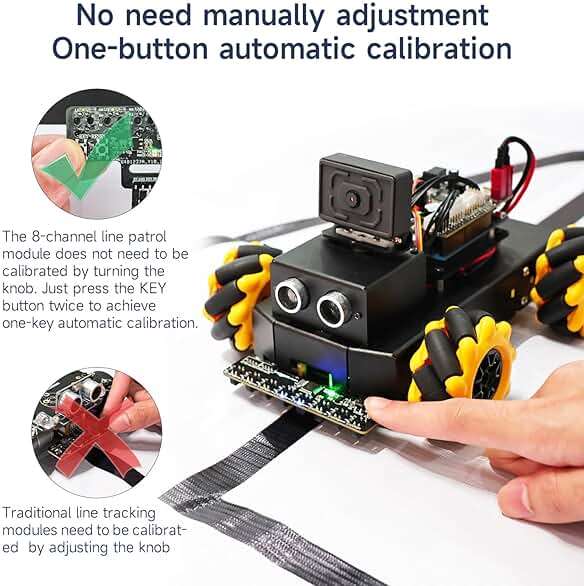

• 【One-Key Calibration】No need to adjust the calibration probe with a knob potentiometer, just press the KEY key twice to complete the probe's recognition of color.Save adjustment time and reduce environmental interference factors.

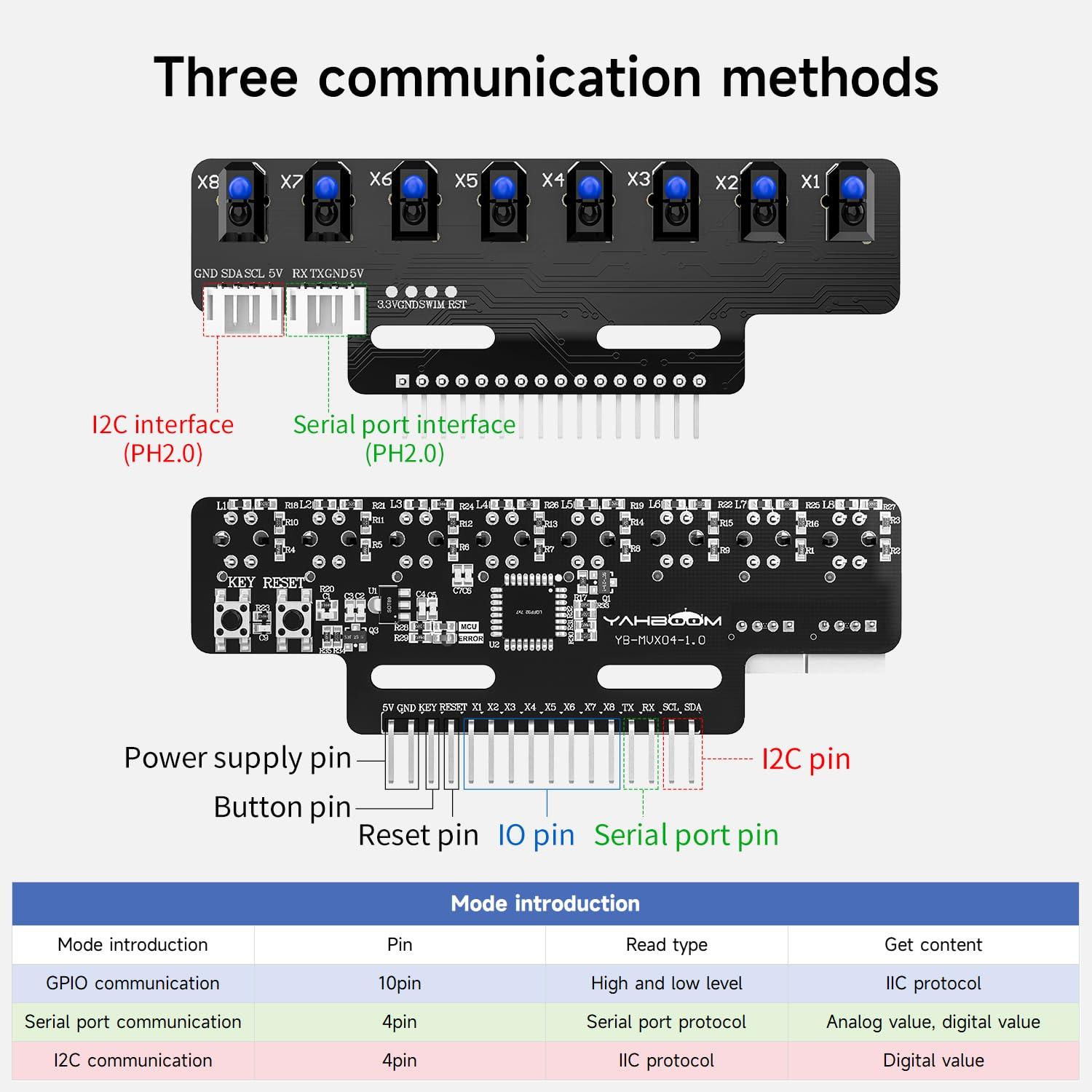

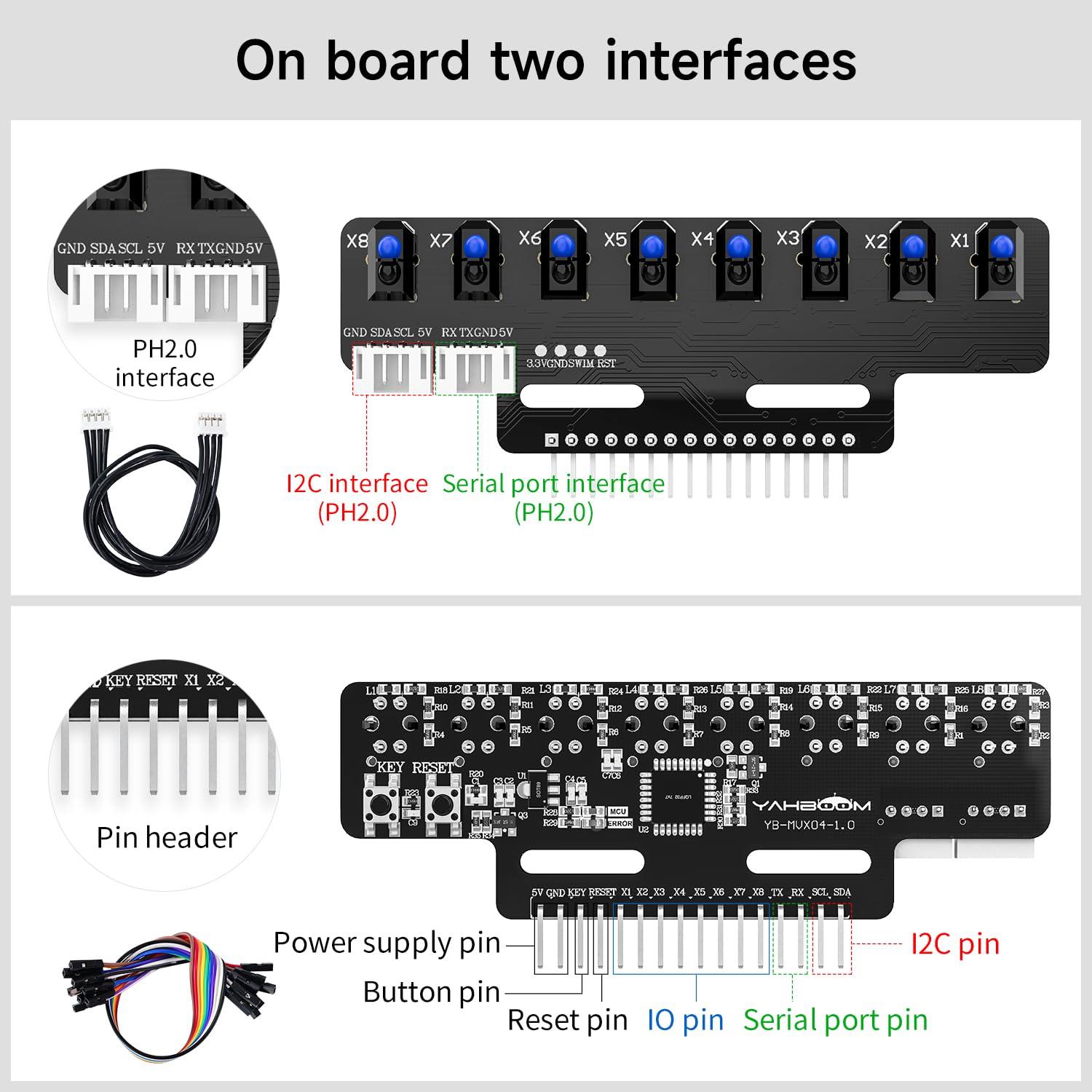

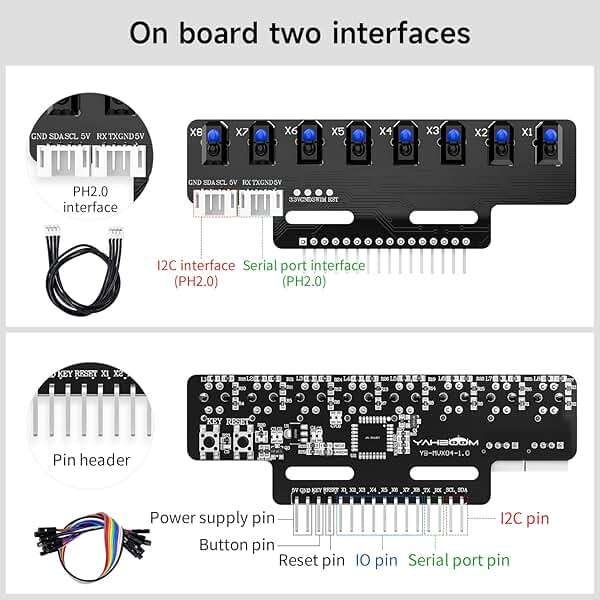

• 【3 Communication Methods】GPIO is equipped with 10 pins,connected with PH2.0 cable;DuPont line connection:can be connected to the IIC port pin of the development board.Support USART communication method,can read analog changes (0-255).

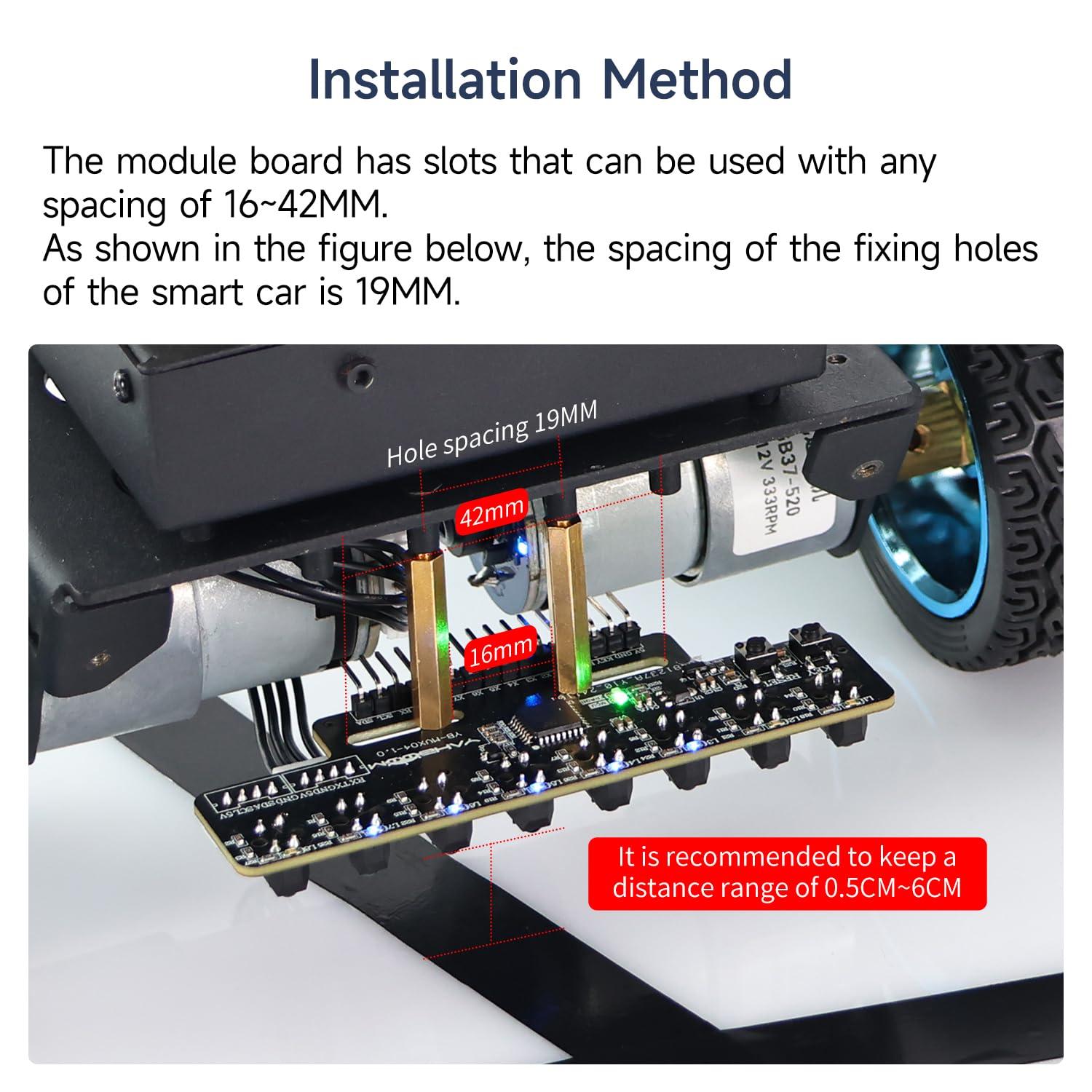

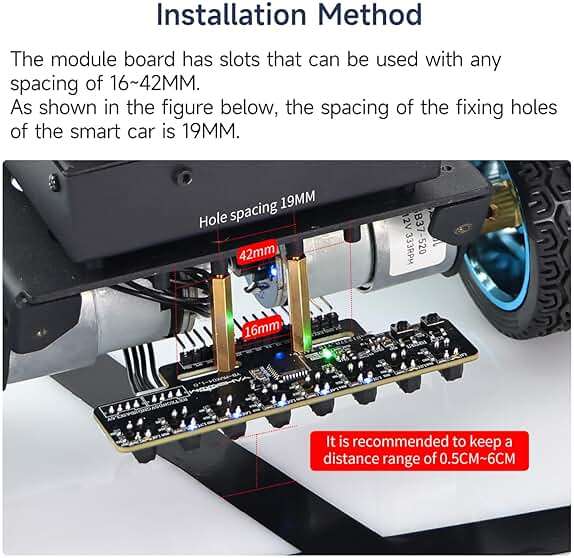

• 【Slot Design】Compatible with 16-42mm hole positions,M3 and M2.5 aperture screw copper columns can be installed and fixed (List includes M3).Users can choose the hole position and aperture according to their own car.

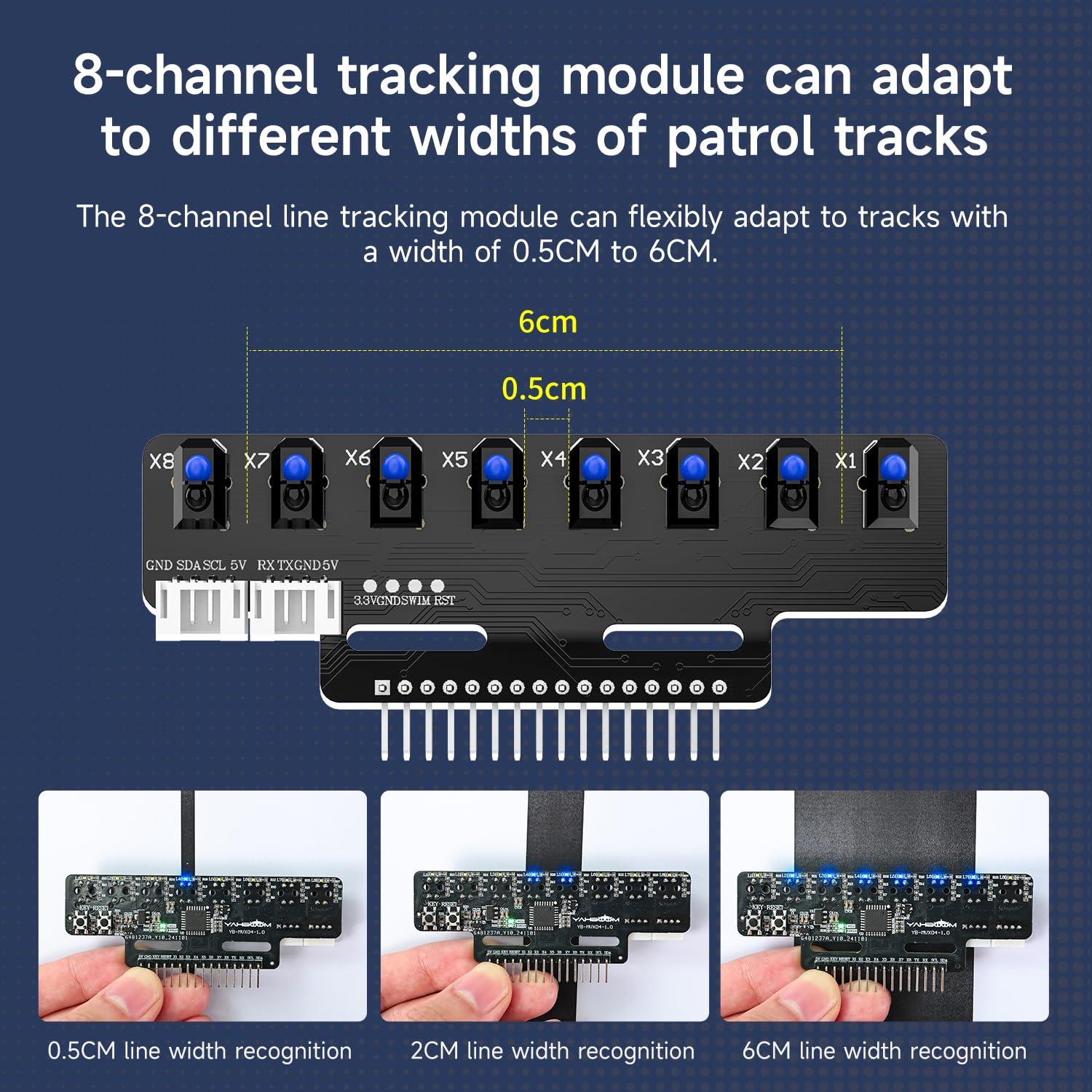

• 【Applicable Scenarios】Line width range:0.5-6cm track width; height range:0.5-6cm;Eight-channel line patrol is suitable for RaspberryPi/STM32/UNO robot series,connect the expansion board or the interface on the mainboard to realize the line patrol function.Yahboom provides English information and technical support.
