Features

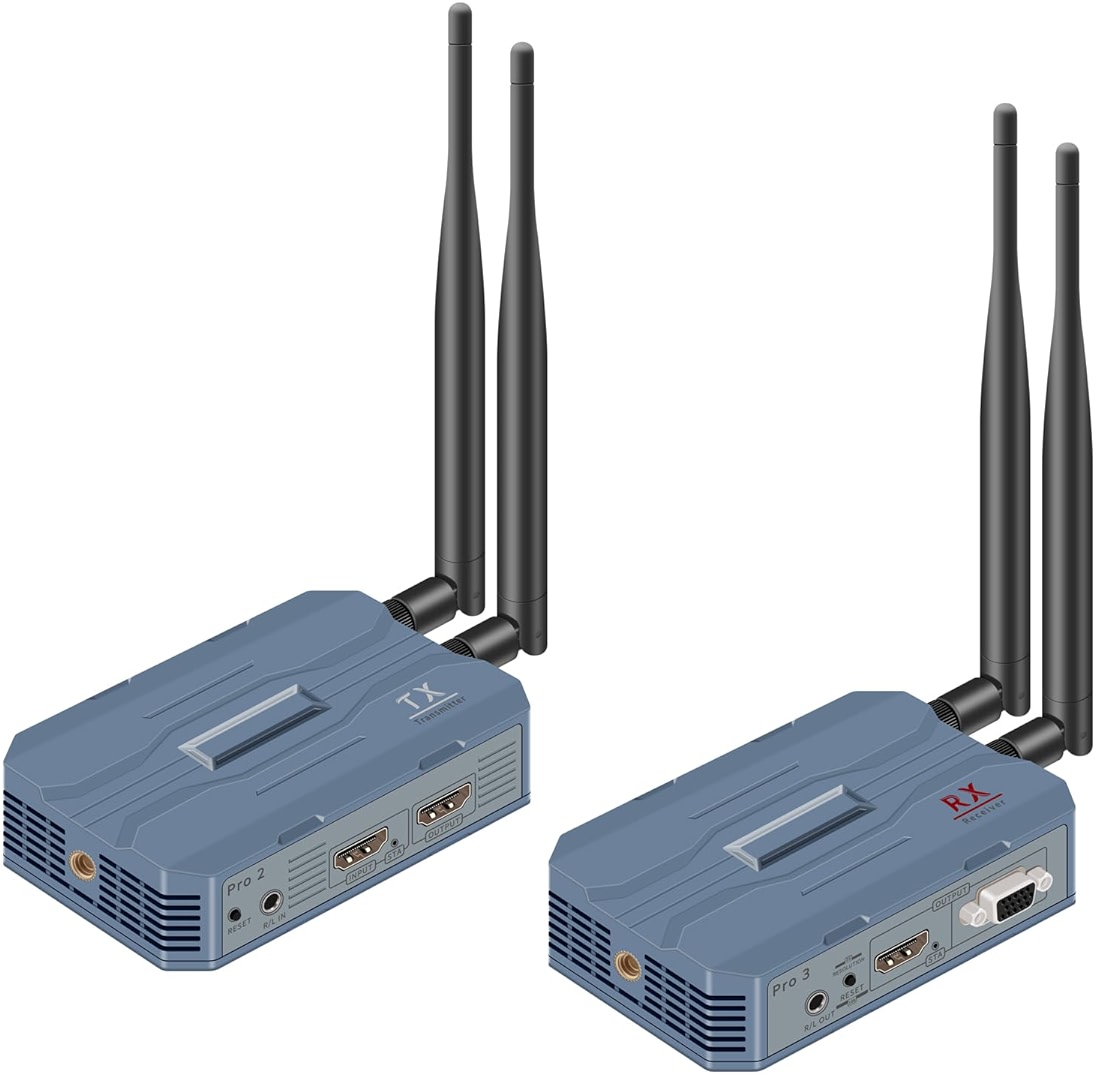

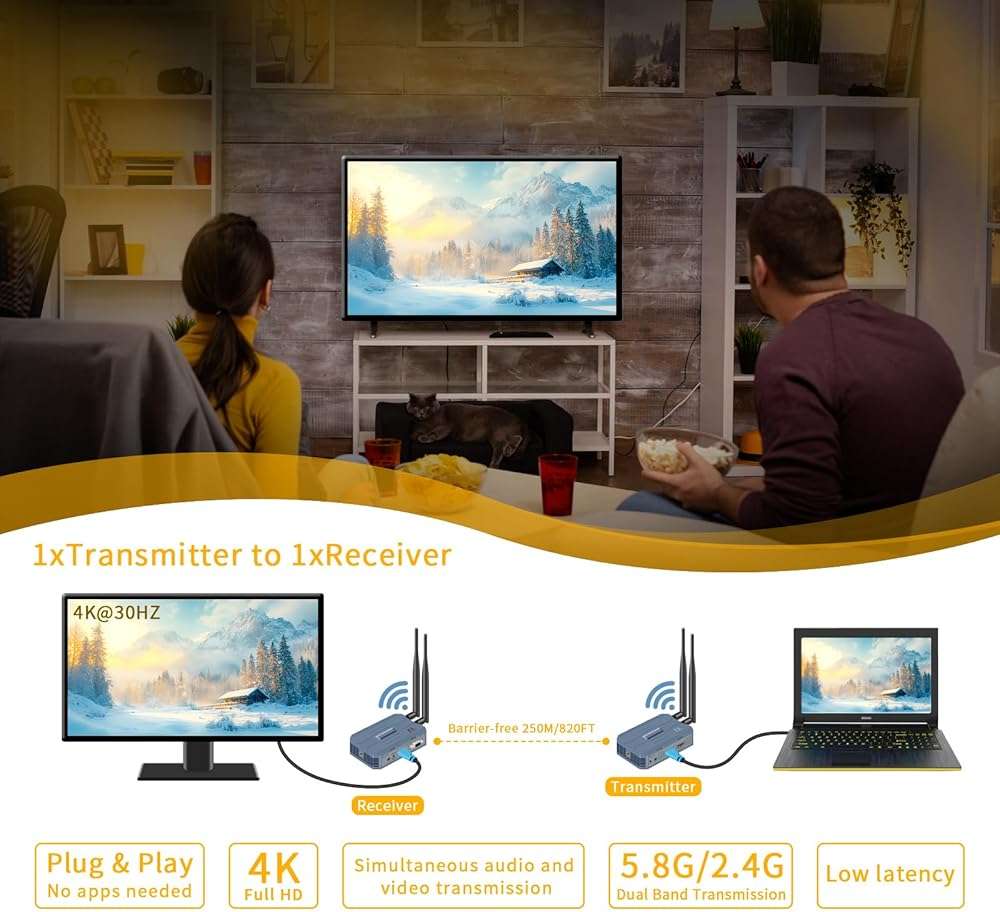

• 【Pro 4K HD+Local Loopout+IR+audio Transmitter and Receiver】 4K transmitter and receiver supports both wireless and network cable transmission. This 1TX and 1RX set enables 1 HDMI source to be synchronized to 1 RX via wireless transmission, suitable for use in open environments up to 820FT or multiple different rooms indoors. It supports up to 4K@30HZ, and also supports 12560*1440@60HZ/1920*1200@60HZ/1920*1080@60HZ/1600*1200@60HZ/720P@60HZ, etc. The TX comes with an HDMI OUT port to connect to a local monitor. It also supports remote 30kHz-60kHz widescreen IR control and embedded audio input and output, and can be connected to independent audio signal sources and audio players.
• 【2 types of transmission: wireless and network cable】The 4K Transmitter and Receiver support both wireless and network cable transmission. For wireless transmission, it is recommended to connect up to 4 RXs to one TX, and if you are limited by the environment or need to connect more RXs, you can use the network cable to transmit. If you use network switch, you can theoretically connect up to 253 RXs to one TX at the same time, and you can also connect to a LAN for transmission, which only occupies about 10M bandwidth.4K transmitter and receiver also support connecting to a high power wireless bridge repeater, to realize wireless transmitting across floors or ultra-long distance transmitting
• 【Wireless use environment】 The distance labeled for wireless transmitter and receiver is usually the maximum distance when there is no obstruction in a horizontal plane, and the specific use is subject to the use environment, we recommend using it in the same space or in adjacent rooms on the same floor. However, they cannot penetrate iron plates, load-bearing walls, etc., and are not recommended for use in spaces that are closed to each other or between floors.

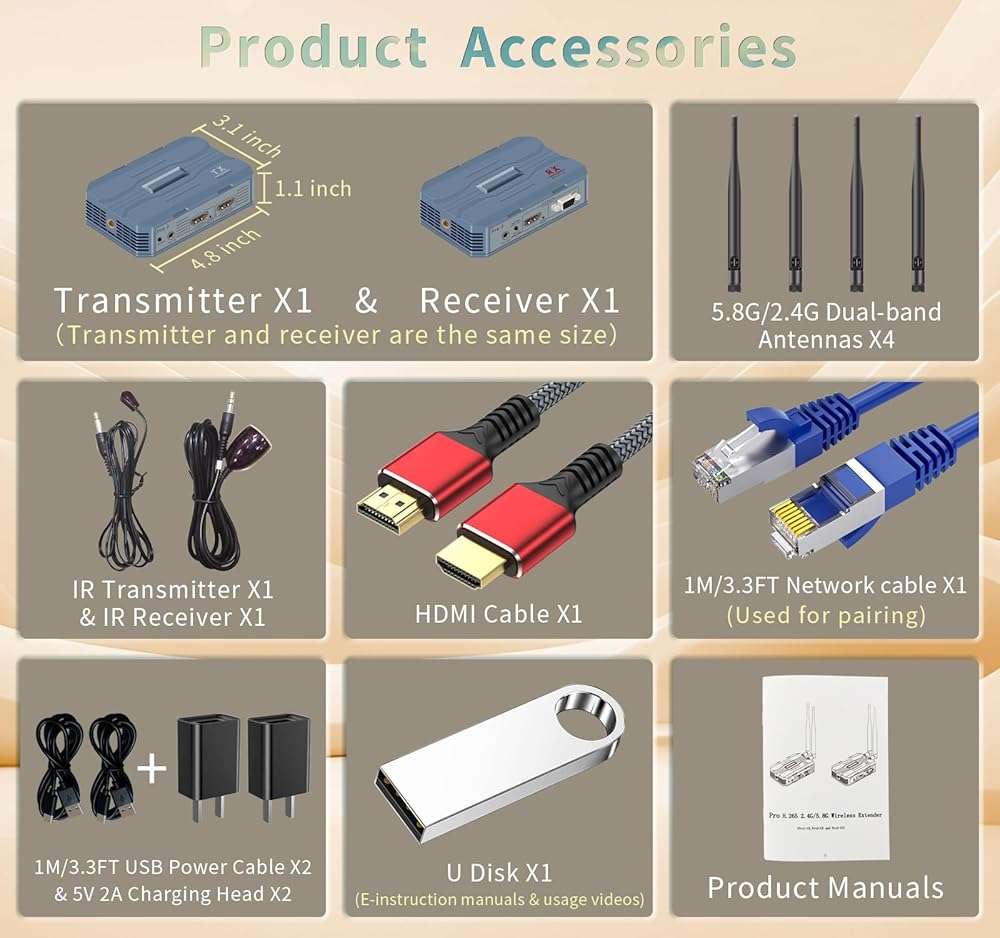

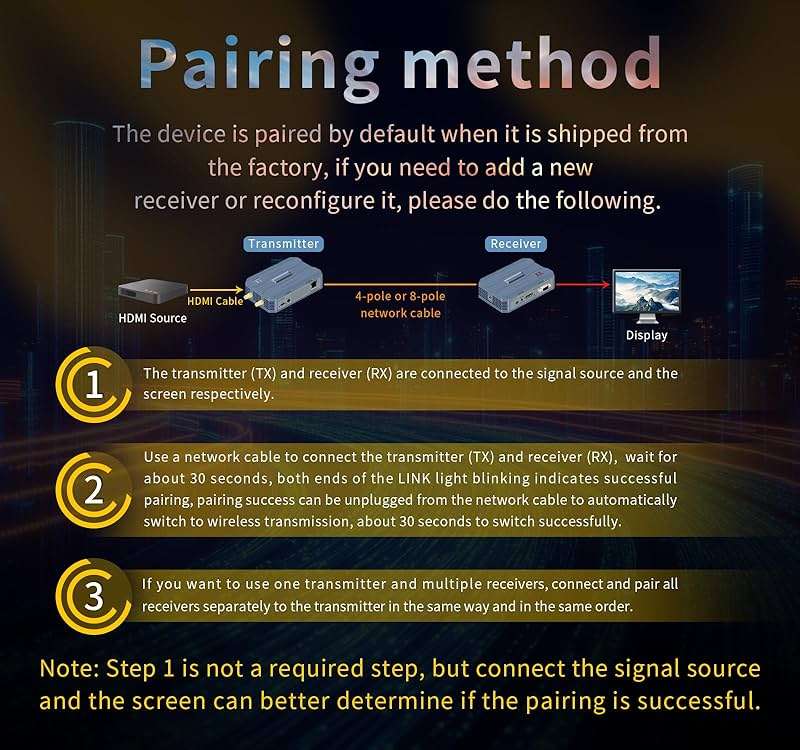

• 【Simple Pairing】 kits are paired successfully by factory default. To operate the pairing, you only need to plug in the power supply and signal source of the transmitter and receiver respectively, use a network cable to connect the transmitter and receiver and wait for about 30 seconds, when the LINK of the transmitter and receiver blinks, it indicates that the pairing is successful, and then unplug the network cable and wait for about 30 seconds again to switch to wireless transmission automatically. This pairing method solves the problem of easy failure of key pairing. The package comes with a 1 meter cable for pairing, or you can use other cables (not larger than 492FT).
• 【RESET ADJUST RESOLUTION 】Press and hold the receiver's RESET button for 2 seconds to cycle through the three resolutions the receiver displays: 4K@30HZ/1080P@60HZ/720P@60HZ, adapting to different monitors. When a transmitter is connected to multiple receivers, each receiver can be adjusted to display a different resolution. Note: Long press for 10 seconds or more, the wireless transmitter receiver will cancel pairing, please pay attention to the operation.

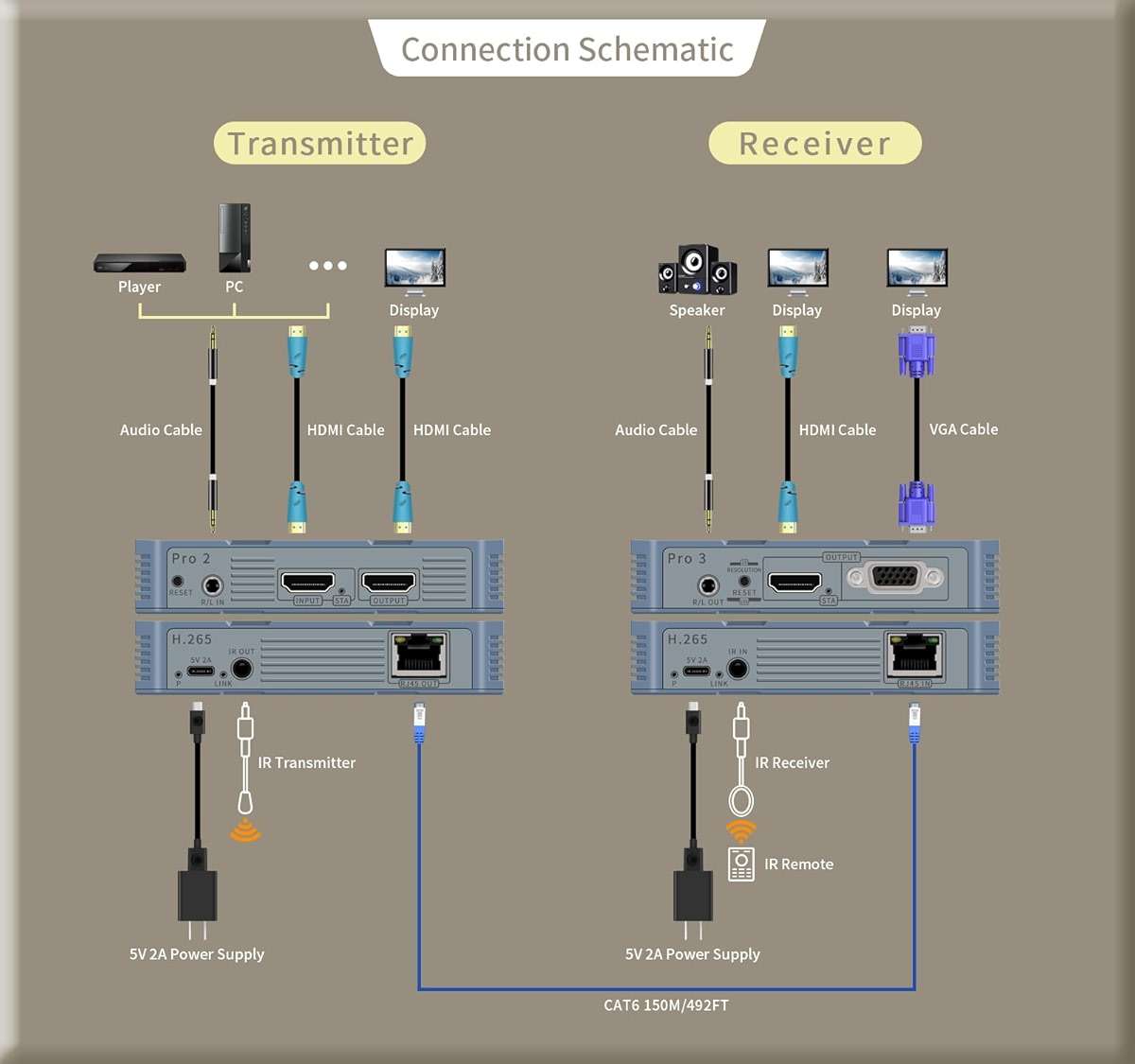

• 【Independent Audio and IR Control】 The TX side of the wireless transmitter and receiver supports embedded 3.5 stereo audio input, which can be connected to different audio signal sources, and the RX side supports 3.5 audio output to connect speakers and amplifiers, which gives you an immersive experience. Meanwhile, the wireless transmitter and receiver support remote 30kHz-60kHz widescreen IR control, such as set-top box and other sources, after connecting the IR cable, you can use the remote control of the set-top box to operate the source in different rooms, easy to use. Note: Some private IR protocols may not be supported, such as private IR control protocol.
• 【Web Backend and Network Cable Transmission】The 4K transmitter and receiver have a TCP/IP IPV4-based WEB backend, which allows you to log in to the backend for a number of settings using only the default IP, TX: 192.168.1.166/RX: 192.168.1.167. Functions such as modifying the IP and setting the TX LOOP resolution, HDMI/DVI input signal format, as well as adjusting the wireless channel and setting up multi-transmitter-multi-receiver transmission for LAN-based transmissions. If multiple wireless devices are used in the same space, you can adjust the wifi channel of different devices via web background to avoid mutual interference.

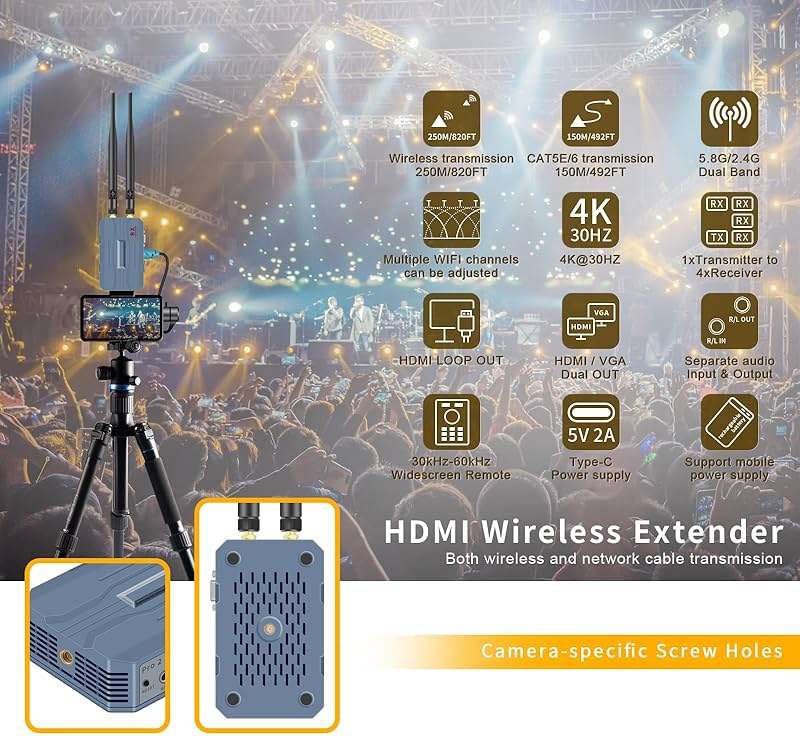

• 【Power Supply Notes and 1/4 Nut】The 4K transmitter and receiver is powered by typec interface, equipped with USB power cable and 5V 2A USB charger, please connect the USB charger for power supply. Please do not use USB2.0/3.0 interface to supply power directly, or it will cause no signal or instability due to insufficient power supply. It also supports mobile power supply, when used with HD camera and other devices, it can be fixed on the bracket by 1/4 nut, which is firm and reliable.
• 【Not suitable for touch screen and game consoles 】4K transmitter and receiver audio and video image transmission has 0.1S~0.15S (100ms~150ms) delay, suitable for video conference PPT playback, movie and TV playback, monitoring system and other scenes. However, it is not suitable for touch screen and game console which requires 0 delay, please confirm the demand before purchase.

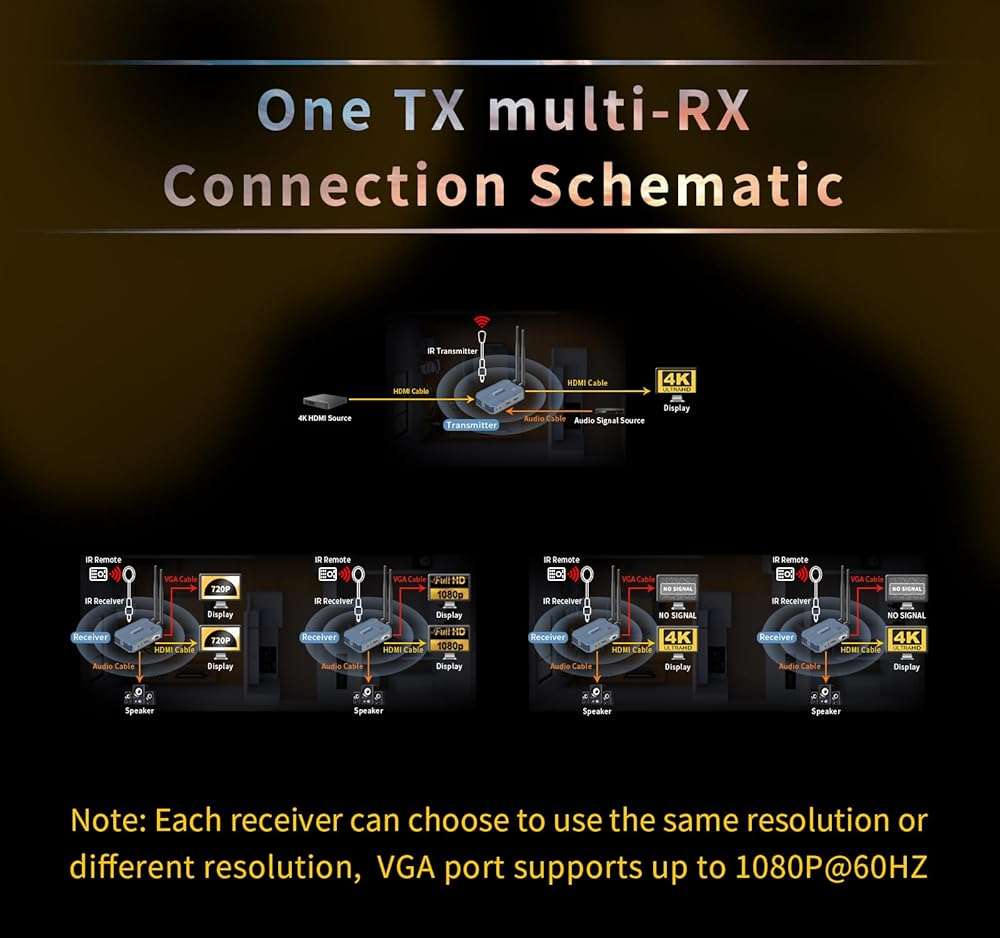

• 【Maximum Support 1TX to 4RX】4K Wireless HDMI Transmitter Receiver can synchronize up to 1 source to 4 remote displays, you can add more RX to connect multiple devices as needed. Each additional RX will shorten the wireless transmission distance by about 20M/65FT when there is no obstacle in the open space, e.g. the transmission distance from 1 TX to 1 RX: 820FT/250 meters; the transmission distance from 1 TX to 2 RX: 755FT/230 meters.
